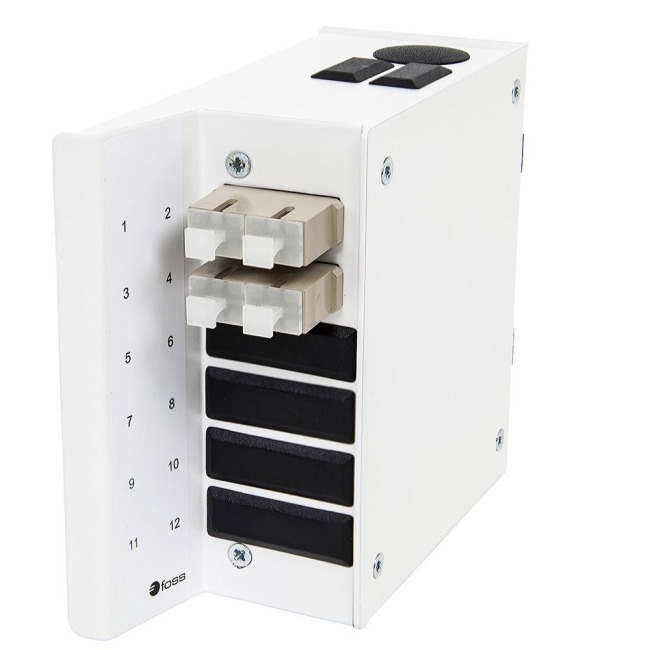

Wall box DIN MINI, 4 SC, 62.5/OM1, AXAI
A flexible and small distribution box for fiber optics, suitable for DIN rail mounting or directly on the wall. Both the lid and the adapter plate can be removed, making it easy to work in the box.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: Fiber optic Distribution box, 10m pre-terminated AXAI cable, 4 SC adapters, 62.5/OM1 | Nummer: FPD66-4SCOM1-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber optic Distribution box, 20m pre-terminated AXAI cable, 4 SC adapters, 62.5/OM1 | Nummer: FPD66-4SCOM1-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber optic Distribution box, 30m pre-terminated AXAI cable, 4 SC adapters, 62.5/OM1 | Nummer: FPD66-4SCOM1-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
A flexible and small wall box for fiber optics, suited for DIN-rail mounting in cabinets. The box has room for up to 24 LC-connectors or 12 SC– or ST-connectors. Suitable for using pre-terminated cable or for splicing of up to 24 fibres. There is holes for 1 or 2 MPO adapters (both at top and bottom) to enable the box to hold fan-outs from MPO to e.g. LC. Both the lid and the adapter plate may be removed, making simple access for working in the box.
- DIN-rail mount or directly on wall
- Simple access inside panel
- May be mounted left or right
- Each unit may handle up to 24 connectors for pre-termination or splicing
SPECIFICATIONS DIN mini
Material: Aluminium White paint, RAL9010
Cable entrances: 2 stk. (1 at top and 1 at bottom) 1 gland is included (M20)
Mounting options:
- DIN-rail in the back,
- DIN-rail on the side,
- Side mount requires "Wall bracket" screw on wall (side) - see accessories.
Capacity: 24 (LC), 12 (SC, ST, E2000)
Dimensions:
Included adapters and DIN-rail clip: 55 x 110 x 137 mm (W x H x D)
When using "Wall bracket": 65 x 110 x 129 mm (W x H x D)
Weight: 0.4 kg
