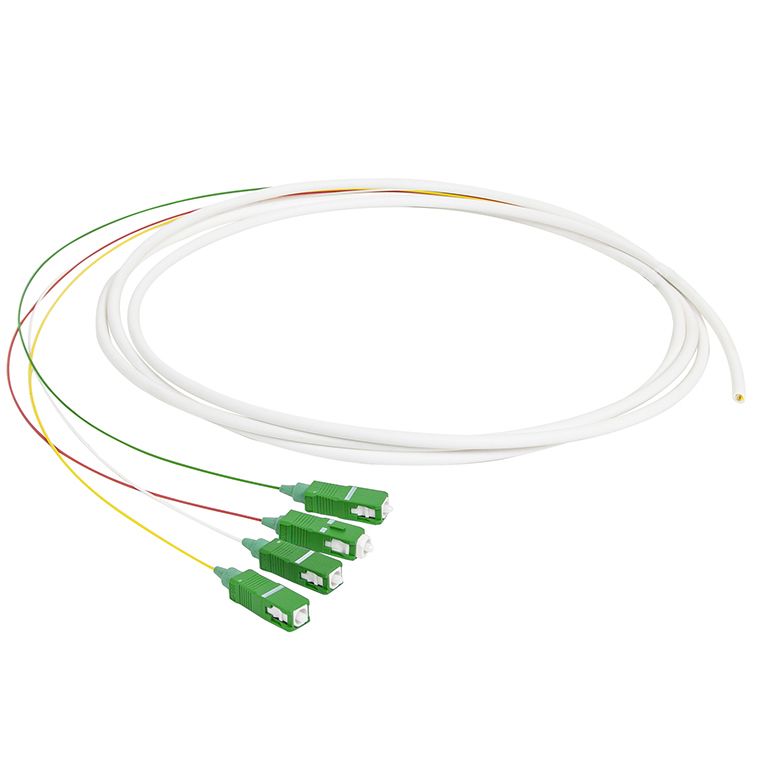

Subscriber cable, 4xSC/PC, 9/OS2/4500, 0.9 mm fan-out, white

From: excl. VAT
See variants

Fiber optic subscriber cable with 2xSC/PC connectors with 0.9 mm ending. For wideband cabling for use in private homes.

Variant Product Number Length Stock Price
Variant: 5m Fiber optic Subscriber cable, Connectors 4xSC/APC, 9/OS2/4500, 0.9 mm fan-out Nummer: 8-2TE0-050-D Length 5 m
Stock:
Price:
Variant: 15m Fiber optic Subscriber cable, Connectors 4xSC/APC, 9/OS2/4500, 0.9 mm fan-out Nummer: 8-2TE0-150-D Length 15 m
Stock:
Price:
Variant: 30m Fiber optic Subscriber cable, Connectors 4xSC/APC, 9/OS2/4500, 0.9 mm fan-out Nummer: 8-2TE0-300-D Length 30 m
Stock:
Price:
Variant: 50m Fiber optic Subscriber cable, Connectors 4xSC/APC, 9/OS2/4500, 0.9 mm fan-out Nummer: 8-2TE0-500-D Length 50 m
Stock:
Price:

The digital broadband technology within the fibre to the home segment is evolving rapidly. To be able to offer services with the quality expected by the customer, cables and components used must have the necessary quality.  When running cable in a house the cable may be exposed to more severe bends than are normal in other parts of the network. This requires a fibre that is more insensitive to these types of effects. Our subscriber patch cords/subscriber cables uses single mode fibres according to ITU-T G.657.A2 which meets these requirements.

Subscriber cable  w/0.9 mm ending , white 1-, 2- or 4-fibre cable with connector in one end. Terminated side have a stripped ending of 65cm with 0.9 mm fibre. This enables fibre storage inside the wall outlet or home central. The connector is either connected to the wall outlet or directly to the home central. The other end is typically spliced to the incoming cable (from the broadband supplier) in an external subscriber box.



  • For wideband cabling for use in private homes.
  • Using bend resistive fibre according to ITU-T G.657.A2.
  • 4.5 mm white subscriber cable.
  • 2.8 mm white patch cord between wall outlet and home central.
  • Flame retardant, low smoke and zero halogen (FR-LSZH).
  • The subscriber cable has UV-stabilised outer jacket.

Specifications

Connector type: SC or LC IEC 61 754-4 (SC),  IEC 61 754-20 (LC)

Polishing:          PC            Colour code blue
                            APC          Colour code green

Fibre type:  Single mode         ITU-T G.657.A2

Insertion loss connectors:  < 0.5 dB @ 1310/1550 nm                   < 0.15 dB typical

Return loss connectors:   < -45 dB @ 1310/1550 nm for PC         < -50 dB typical
                                                < -60 dB @1310/1550 nm for APC        < -65 dB typical

Classification, connectors: Class C2 (PC), class C1 (APC)  IEC 61755-1

Operating wavelength: 1260 - 1625 nm


CABLE

Cable type:  Metal free, dry, tight buffer

CPR fire class: Dca-s2, d2, a1                            EN 50399

Outer jacket: UV-stabilised FR-LSZH              EN 50290-2-27

Operating temperature:  -40°C to 60°C

Bend radius: 45 mm
