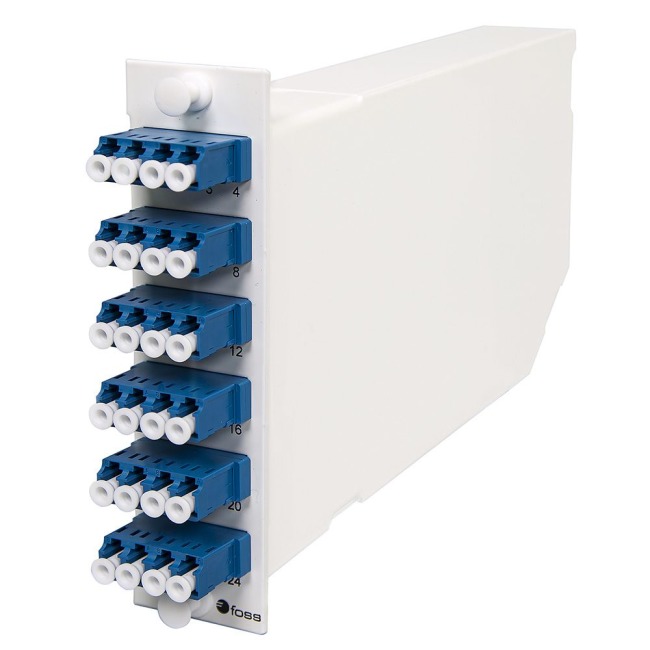

Module FPM76, 24 LC/PC, 9/125, AXAI
Fiber optic Module panel with factory-installed pre-terminated cable. The series includes pluggable modules mounted in a 1U or 3U frame. This gives a flexible solution that easily may be expanded as needed.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: Fiber Optic Cassette with 24 fiber LC/PC adapter, 10m cable AXAI | Nummer: FPM76-24SLC-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber Optic Cassette with 24 fiber LC/PC adapter, 20m cable AXAI | Nummer: FPM76-24SLC-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber Optic Cassette with 24 fiber LC/PC adapter, 30m cable AXAI | Nummer: FPM76-24SLC-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber Optic Cassette with 24 fiber LC/PC adapter, 50m cable AXAI | Nummer: FPM76-24SLC-050 | Length 50 m |
Stock:
|
Price:
|
|
|
|
Module with factory mounted pre-terminated cable, type AXAI. Can also be delivered with Micro cable
The module should be mounted in a 1U or 3U panel. There is room for 12 modules in the 3U panel and 3 modules in the 1U panel. Various modules can be placed in random order in the patch panels. This ensures a flexible and modular construction that can easily be extended with more modules.
- Connector type: LC/PC
- Cable type: AXAI, tight buffer, fire retardant and halogen free
- Fibre type: Single mode according to ITU-T G657.A1
- High quality factory mounted connectors
- Plug-in module for 1U or 3U panel
- Can be mounted in 19" cabinet/rack
See also under FP70 PRO for information about alternative panels
Description
The module is delivered with a front for 6 LC Quad adapters that gives a capacity of 24 LC-connectors. The modules are plugged into a 1U frame (3 modules) or a 3U frame (12 modules). If the frame is not fully populated with modules, the rest of the slots may be covered by blanking plates.
The modules may contain adapters, pigtails, pre-terminated cable, splitters, OADM, WDM, CWDM, DWDM or combinations of this.
There are also modules for storage of excess fibre so one or more storage units may be placed among the other modules.
Specifications
Capacity module: 24 LC-connectors
Total capacity: 1U/3U frame 72/288 LC-connectors
Dimensions(HxWxD): 3U frame 133 x 488 (19”) x 240 mm
1U frame 44 x 488 (19”) x 240 mm
Weight panel wo/modules: 3U frame ca. 2.4 kg
1U frame ca. 1.5 kg
Fibre type/Cable: The FPM series are offered with several types of cable/fibre
| Panel og stativ | |
|---|---|
| Fiber type | Single mode OS2 |
| Contact | LC |
