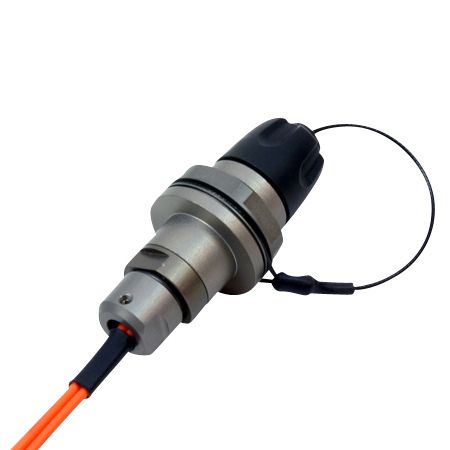

4-channel PBJR connector-SC/PC, AXAI, 9/OS2

ProBeam Jr. ruggedized connectors for optical communication in rough environments within defense and industry.

• For establishing temporary communications in the field
• For communications within industry, ships and offshore with open outdoor connector points
• 4 fibre
• Delivered as single mode 9/125, multi-mode 50/125 and multi-mode 62.5/125 µm
• Is delivered with SC connector in the other end for internal cabling

A ProBeam system normally consists of a given length of tactical cable with ProBeam jr. plugs in both ends. This is connected to the ProBeam Jr. bulkhead connector which normally is mounted on a wall. The other end of the panel connectors comes with a length of data cable with a standard data connector like SC for the internal cabling.

SPECIFICATIONS

Optical:
Insertion loss (typical against reference):
      2 and 4 channel multimode at 850/1300 nm            < 1.5 dB (typical 0.7 dB)
      2 and 4 channel single mode at 1310/1550 nm       < 1.5 dB (typical 0.8 dB)
      8 channel multimode at 850/1300 nm                      < 2.0 dB (typical 0.7 dB)
      8 channel single mode at 1310/1550 nm                 < 2.0 dB (typical 0.8 dB)

Reflection loss (typical against reference):
      Single mode                                                            - 34 dB at 1310/1550 nm

PHYSICAL PROPERTIES

Weight
      ProBeam Jr/Sr plug                               125/290 g
      ProBeam Jr/Sr bulkhead connector       100/150 g

Operational temperature
      In use        -40 oC to +85 oC
      Storage     -55 oC to +85 oC

Free fall 1.2 m on concrete  500 drops

Coupling endurance   3000

Immersion in water
      Jr. plug/bulkhead        15/15 m depth
      Sr. plug/bulkhead        5/2 m depth

MATERIALS
ProBeam plug and bulkhead connector is delivered standard in anodised aluminium with boot and grip in EPDM-rubber. The connectors may also be delivered in NiAlBr for high saline environment.

FIBER AND CABLE

Fibre type:
      Single mode 9/125 µm        OS2 (ITU-T G.652.D)
      Multi mode 50/125 µm        OM3
      Multi mode 50/125 µm        OM2
      Multi mode 62.5/125 µm     OM1

Cable:
      Material  (standard)                        Polyurethane
      Material (option)                             LSZH (Low Smoke Zero Halogen Polyurethane)
      Outer diameter                               5.5 mm
      Tension strength at installation      1800 N
      Crush resistance                            440 N/cm
