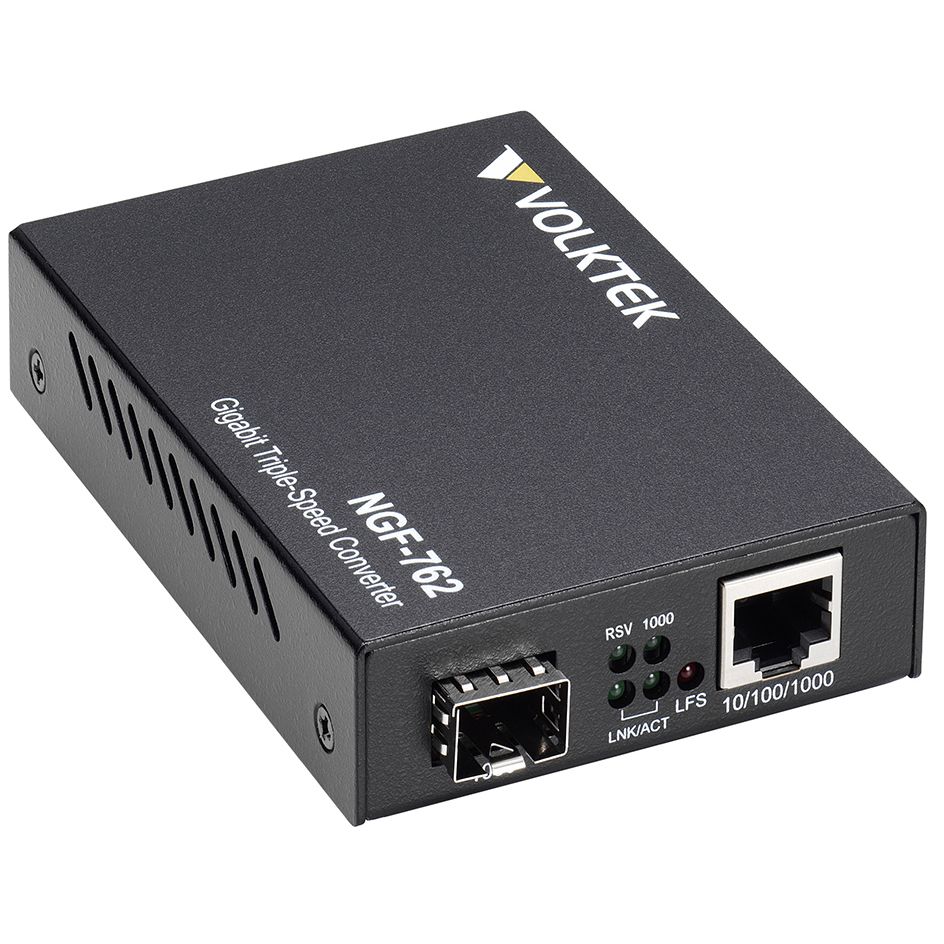

10/100/1000Base-T to SFP, 12 VDC

• Auto MDI/MDI-X
• 10/100/1000Base-Tx on copper side
• 1000Base-SX/LXon the fibre side
• transfer distance and fibre type according to the chosen SFP
• Comes with power supply
• Can be mounted in NXF-719" subrack
• Status LED
• Alarm for fibrelink error

The NGF-762 Gigabit Media Converter is specifically designed for large workgroups such as enterprise or campus environments which demand maximum bandwidths, and engineered to offer a solution for networks that are ready to expand or migrate from copper-based Gigabit triple speed to Fiber-based Gigabit network. Along with the capability of converting media transmissions, the NGF-762 features intelligent functions like Auto MDI/MDIX, LFS (Link Fault Signalling), LEDs, DIP switches etc to provide easy plug-andplay, continuous monitoring and thereby minimize downtime for mission-critical networks.

Featuring an RJ-45 port and an SFP slot, the NGF-762 converts 10/100/1000Base-T network to 1000Base-SX/LX fiber network or vice versa by easily integrating copper with fiber and allowing them to operate smoothly. This gives the utmost flexibility in installing various connections over fiber and extend the reach of Gigabit Ethernet connectivity over single-mode or multi-mode fiber or SFP module. The NGF-762 offers you the most economic and cost-effective solution to meet your need for long distance transmissions up to 80km and provide a gradual migration path from existing Fast Ethernet network to Gigabit network.
