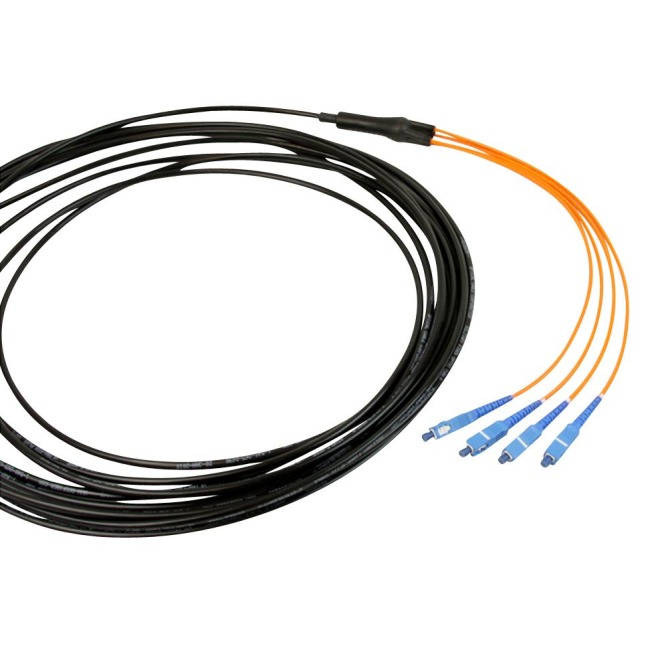

2-fibre Factical cable, 9/125, ST/PC-ST/PC

Pre-terminated single-mode tactical cable for rough environments.

• For establishing temporary facilities in the field
• Defense, industry, offshore
• Military tactical cable for extreme conditions
• Fibre type: Single-mode 9/125 µm
• Can be delivered in any length at all
• Up to 500 m on the reel
• Up to 2000 m on other reels

DESCRIPTION
A manifold is attached at the end of the cable to fan out the fibres in a controlled way. Each fibre is individually protected by a 3.0 mm tube. Length of free fibre will be as illustrated below. For cables with more than 2 fibres the length of the 2 next fibres will increase with 5 cm (+0/-5 cm) for every 2. fibre as shown.

The tactical cable may be delivered on a ruggedized cable reel. A wide selection of reels with stand are available, see separated data sheet for details. Dust caps attached to the cable may also be delivered.




OPTIONS
As an option the connector side of the cable may be protected with a flexible tube. There are 2 types:

Protection cable-end (with or without pulling grip):
This is made from a flexible tube and is meant as transport/pulling protection before and during installation and is completely removed after use. Outside this tube an optional cable pulling grip may be placed if the cable shall be pulled through tubes.

Protection cable-end, detachable:
Here the protection may be taken of and put back on, it is therefore suited when the cable will be moved several times. The disadvantage may be that the protection can not be fully removed from the cable.

SPECIFICATIONS

CABLE
Cable type:
      Military tactical cable, black                   Polyurethane
      Military tactical cable LSZH, black        Polyurethane, LSZH (Low Smoke Zero Halogen)

Diameter:
      5.0/5.5/6.5 mm          2/4/8 fibre

Tension strength: 1800 N

Crush resistance: 440 N/cm

Bend diameter:
      80/88 mm                   2/4/8 fibre

Dimensions manifold (fan-out):
      Ø 14 mm x 36 mm       2-fibre
      Ø 20 mm x 75 mm       4-fibre
      Ø 17 mm x 105 mm     8-fibre

Diameter protection w/cable grip:
      32 mm         2/4/8 fibre

Diameter detachable protection:
      49 mm (accessory 990443 - tube: Ø28 mm)                  2/4/8-fibre

Operating temperature: -40°C to 60°C

FIBER (single mode)
Fibre type:
      ITU-T G.657.D
      OS-1                 EN 50173-1

Insertion loss connectors:
      < 0.5 dB @ 1310/1550 nm       < 0.15 dB typical

Return loss connectors:
      < -45 dB @ 1310/1550 nm for PC       < -50 dB typical
      < -60 dB @1310/1550 nm for APC      < -65 dB typical

Classification, connectors: Class C2 (PC), class C1 (APC)                 IEC 61755-1

FIBER (multi mode)
Fibre type:
      OM-1 (62.5/125), OM-2 (50/125)                 EN 50173-1

Insertion loss connectors:
      < 0.5 dB @ 850/1300 nm           < 0.2 dB typical
