OPTICAL CONNECTORS USED FOR MILITARY APPLICATIONS

MIL-PRF-29504 Termini

Termini size 16, are designed for use in D38999 Series III circular connectors. Ferrules have the diameter of 1,6mm.

M29504/4 covers the PIN termini and M29504/5 covers the socket termini.

Termini are prepared separately, and the prepared cables are inserted into the position in the connector. The product is available in both singlemode and multimode variants.

Connector ARINC 801

ARINC 801 is an optical connector used mainly in the aerospace industry. The ARINC 801 Termini is designed for use in the ARINC 801 fiber optic connectors, using a standard diameter of 1.25mm (PC and APC) without splitting into PIN and SOCKET. The product is available in singlemode and multimode variants.

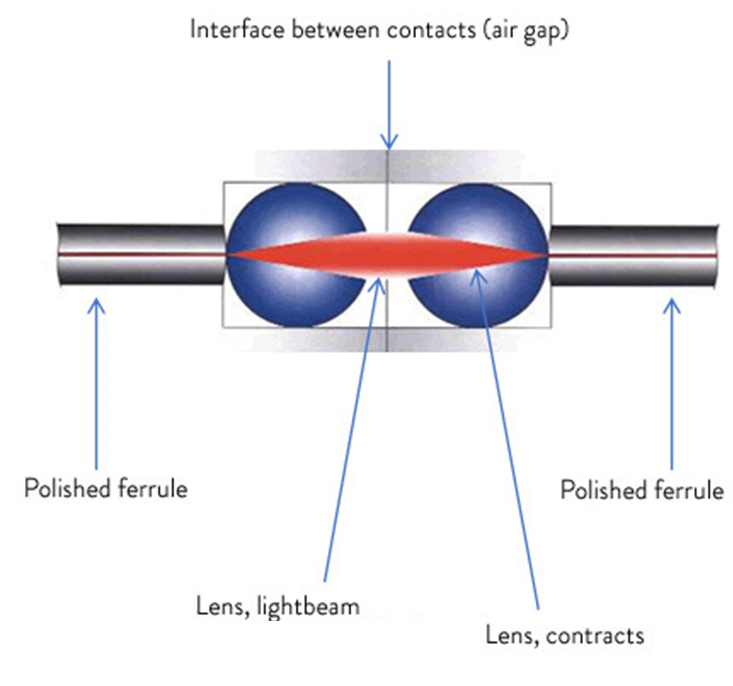

Expanded Beam (EB) Termini

ProBeam EB16 is an EB Termini contact size 16, compatible with MIL-DTL-38999 Series III size 16.

EB Termini can replace the standard Termini M29504 / 4 and / 5 used in many military connectors. It is a so-called contactless interface, suitable especially for applications with frequent disconnection of cabling. The product is consequently more resistant to vibrations and contamination

Customer Presentation: EB16 Optical Single Mode and Multimode Pin and Socket Termini
